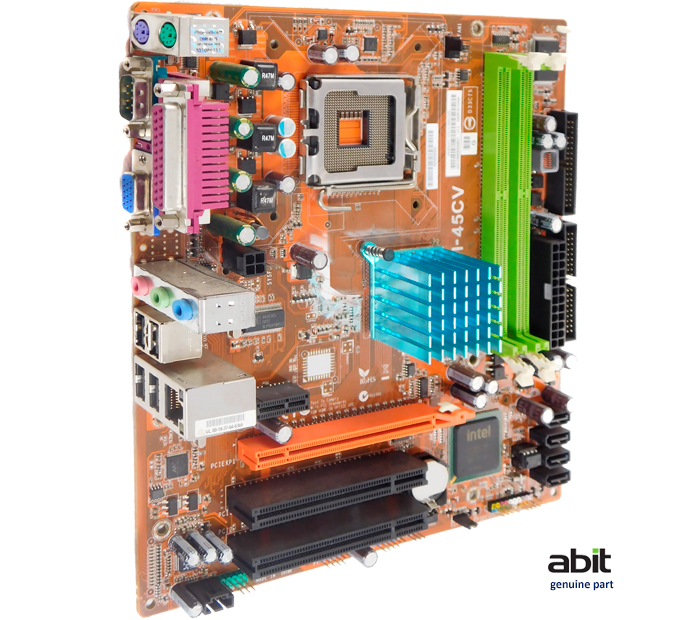

Abit i45CV motherboard LGA 775 Core 2 Duo Intel 945GC desktop
Abit i-45CV motherboard LGA 775 Core 2 Duo Intel 945GC desktop
PN: i-45CV
CPU LGA755 Socket for Intel® Core™ 2 Duo/ Pentium® Dual-Core/ Pentium®
D/ Pentium® 4/ Celeron® D Processors with 1333*/1066/800/533 MHz FSB
*(FSB1333 CCPU will operate in over-clocking mode. Under this situation, PCIE frequency will also be over-clocked to 115MHz.)
Supports Intel® Hyper-Threading Technology
Chipset: Intel® 945GC/ Intel® ICH7 Chipset
Memory: 2 x 240-pin DIMM sockets support max. memory capacity 4GB* Dual DDR2 667 / 800
Graphics: Integrated Intel Graphics Media Accelerator 950
Sata: SATA 3G
Lan: 10/100 LAN
Audio: 5.1 CH HD Audio
Internal
I/O: 1 x Floppy Port supports up to 2.88 MB; 1 x Ultra DMA 100/66/33
IDE connector; 4 x SATA 3Gb/s connector; 2 x USB header (support 4
ports); 1 x FP-Audio, 1 x CD-In
Back Panel I/O: 1 x PS/2 Keyboard, 1 x
PS/2 Mouse; 1 x Serial Port, 1 x Parallel Port, 1 x VGA Port; 5.1 CH
Audio connector (Line-in, Line-out, MIC-in); 4 x USB 2.0, 1 x RJ-45 LAN
connector
product genuine tested working with warranty
|
